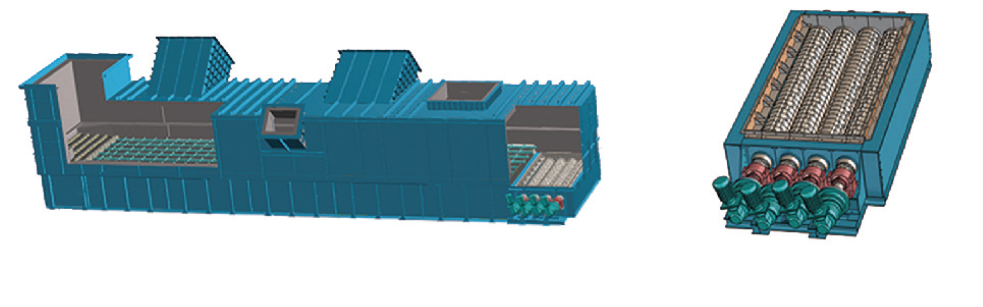

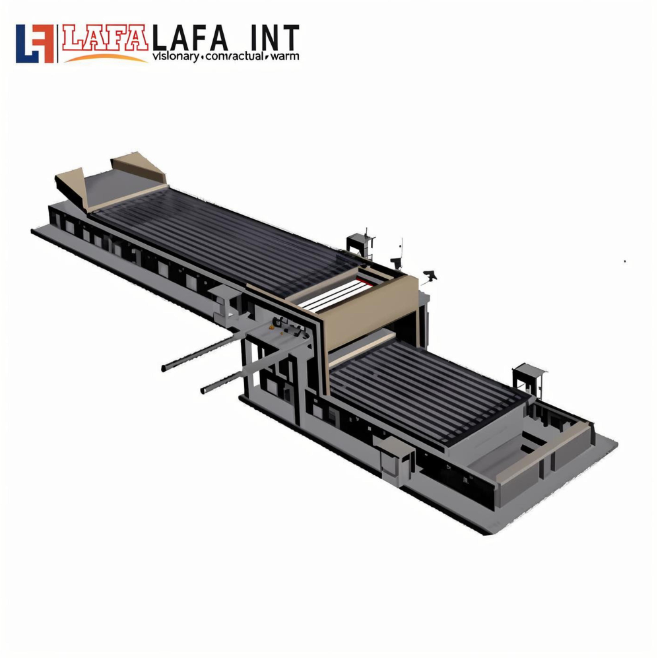

THE 4TH GENERATION LFNC PUSH ROD TYPEGRATE COOLER
The grate cooler conveys and cools the high temperature clinker fired in rotary kiln, and then conveys it tocement mill or clinker storehouse, At the same time, heat is recvcled into other cement production facilities such askiln,decomposing furace,raw material mill， etc.
CORE ADVANTAGE
1. Unique anti "'snowman" measures. Each row of stepped grates equipped with a compressed air injection system to completely eliminate the phenomenon of "snowman" and "red river" and improve the equipment operation rate.
2. A unique air supply system with the grate as a unit. Each grate plate is equipped with a patented automatic flowcontrol valve of the grate cooler.
3. The utility model has the advantages of high efficiency, no leakage grate plate structure, no abrasion on thegrate plate and long service life.
4. The clinker transportation is done through the pushing rod, and the grate bed is not moving to minimize thefailure rate of the equipment.
5. The air intake device is completely fixed and inactive, without funnel and under the bed conveying.
6. The standard block design simplifies the design, fabrication and installation of the grate cooler.
7. Two kinds of clinker crushers equipped with roller and hammer are optional.
